DHL.CL.9010

About Product

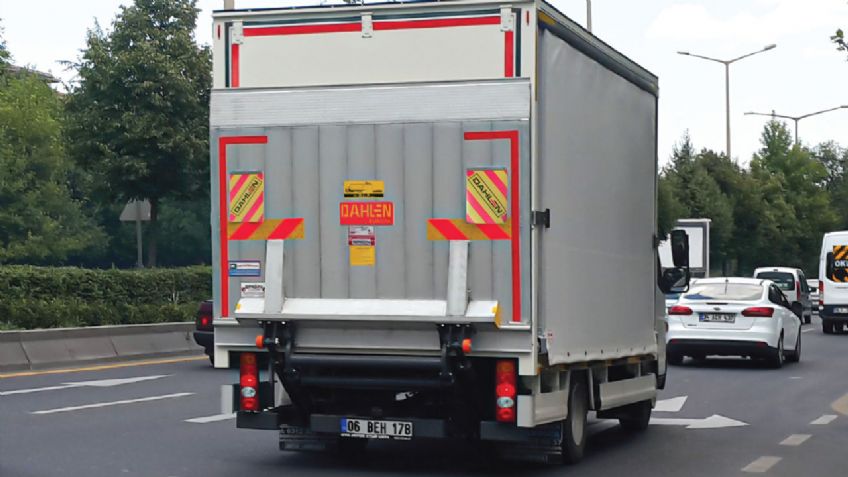

This model produced for light commercial vehicles, for vans and for low tire diameters vehicles with 500- 750 KG loading capacity.

It has 2 different control system.

It can apply Sprinter, Crafter, Hyundai, Transit, Fuso type vehicles.

Specification

  • Lift TypeLight Commercial Vehicle, Outside Mount- ed, C Fitting Bracket (Small Arm)
  • Lift Capacity500 - 750 KG
  • Power SourceBattery of Vehicle 12-volt or 24-volt DC
  • Power UnitHydraulic Powerpack
  • Chassis Profil120x120
  • Platform TypeAluminum
  • Platform SizeDepends On The Vehicle
  • Paint TypeOven Static Paint
  • Lift Arm Length700 mm
  • Max. Lifting800 x 850 mm
  • Max. Lowering350 mm
  • Chassis Width650 mm
  • Chassis Length1.100 mm
  • Body Weight150 kg
  • Platform Weight80 kg
  • Cylinder2 Lift Cylinder + 2 Tilt Cylinder
  • Check Valve4
  • Fitting Bracket Max. Space750 – 860 mm
