DHL.CL.9015

About Product

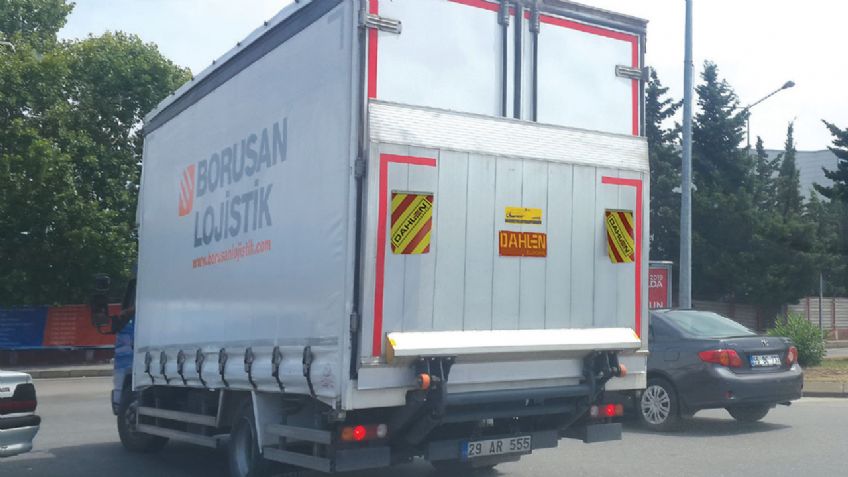

2000 KG capacity, long arm tail lift. It’s produced for 5 ton and 18 ton wide chassis vehicles.

The system is controlled by the right side of the vehicle.

It has 2 different control system.

Tilt movement works automatically.

Specification

  • Lift TypeStandard Long Arm (Large)
  • Lift Capacity2.000 KG
  • Power SourceBattery of Vehicle 12-volt or 24-volt DC
  • Power UnitHydraulic Powerpack
  • Chassis Profil140 x140 ST 52
  • Platform TypeAluminum
  • Platform Size2.200 x 1.700 mm - 2.400 x 1.800 mm - 2.500 x 1.800 mm
  • Paint TypeOven Static Paint
  • Lift Arm Length910 mm
  • Max. Lifting1.400 mm
  • Max. Lowering500 mm
  • Chassis Width800 mm
  • Chassis Length2.700 mm
  • Body Weight310 kg
  • Platform Weight110 kg
  • Cylinder2 Lift Cylinder + 2 Tilt Cylinder
  • Check Valve4
  • Fitting Bracket Max. Space900 – 1.100 mm
