About Product

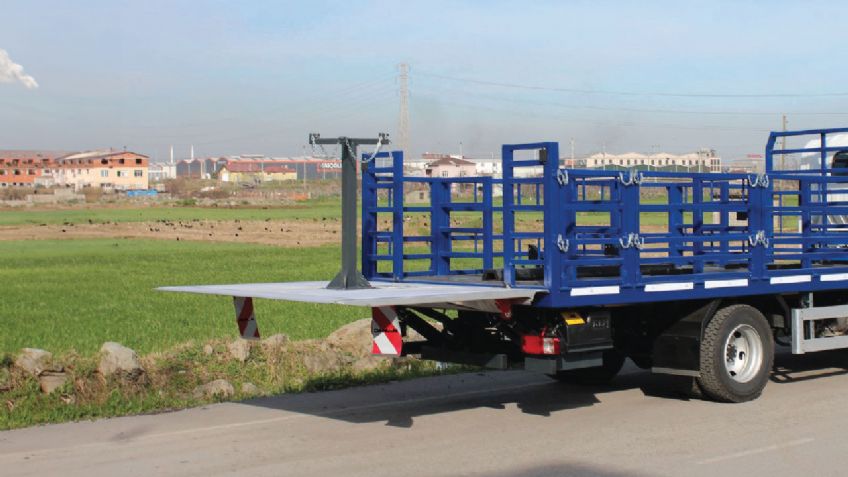

1500 - 2000 KG capacity, long arm tail lift. It’s produced for 7 ton and 12 ton wide chassis vehicles. It uses steel platform. The system is controlled by the right side of the vehicle.

It has 2 different control system.

Tilt movement works automatically.

Specification

  • Lift TypeStandard Long Arm, Steel Platform (Large)
  • Lift Capacity1.500 - 2.000 KG
  • Power SourceBattery of Vehicle 12-volt or 24-volt DC
  • Power UnitHydraulic Powerpack
  • Chassis Profil140 x140 ST 52
  • Platform TypeSteel, for tube transport vehicle
  • Platform SizeDepends On The Vehicle
  • Paint TypeOven Static Paint
  • Lift Arm Length910 mm
  • Max. Lifting1.500 mm
  • Max. Lowering500 mm
  • Chassis Width800 mm
  • Chassis Length2.080 mm
  • Body Weight275 kg
  • Platform Weight375 kg
  • Cylinder2 Lift Cylinder + 2 Tilt Cylinder
  • Check Valve4
  • Fitting Bracket Max. Space740 – 980 mm
