DHL.PV.9000

About Product

Produced for panelvan vehicles with 500-750 KG capacity.

It has 2 different control system.

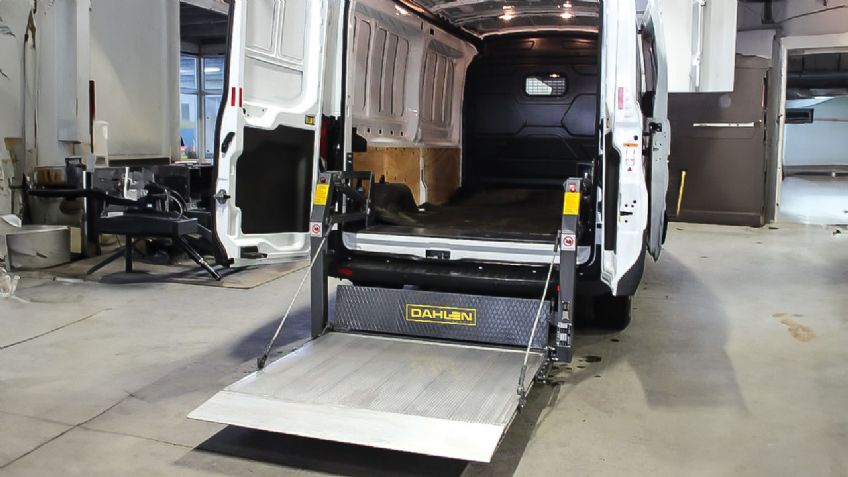

System works with two arms and it’s mounted inside to the vehicle.

This model does not need to project, can mounted easily, safety and practice.

Specification

  • Lift TypeFor Vans Mounted Inside
  • Lift Capacity500 - 750 KG
  • Power SourceBattery of Vehicle 12-volt or 24-volt DC
  • Power UnitHydraulic Powerpack
  • Chassis Profil80 x 80
  • Platform TypeAluminum
  • Platform SizeDepends On The Vehicle
  • Paint TypeOven Static Paint
  • Lift Arm Length990 mm
  • Max. Lifting750 - 850mm
  • Max. Lowering700 mm
  • Chassis Width335 mm
  • Chassis Length1.500 mm
  • Body Weight130 kg
  • Cylinder2 Lift Cylinder
  • Check Valve1
  • Fitting Bracket Max. Space750 – 860 mm
